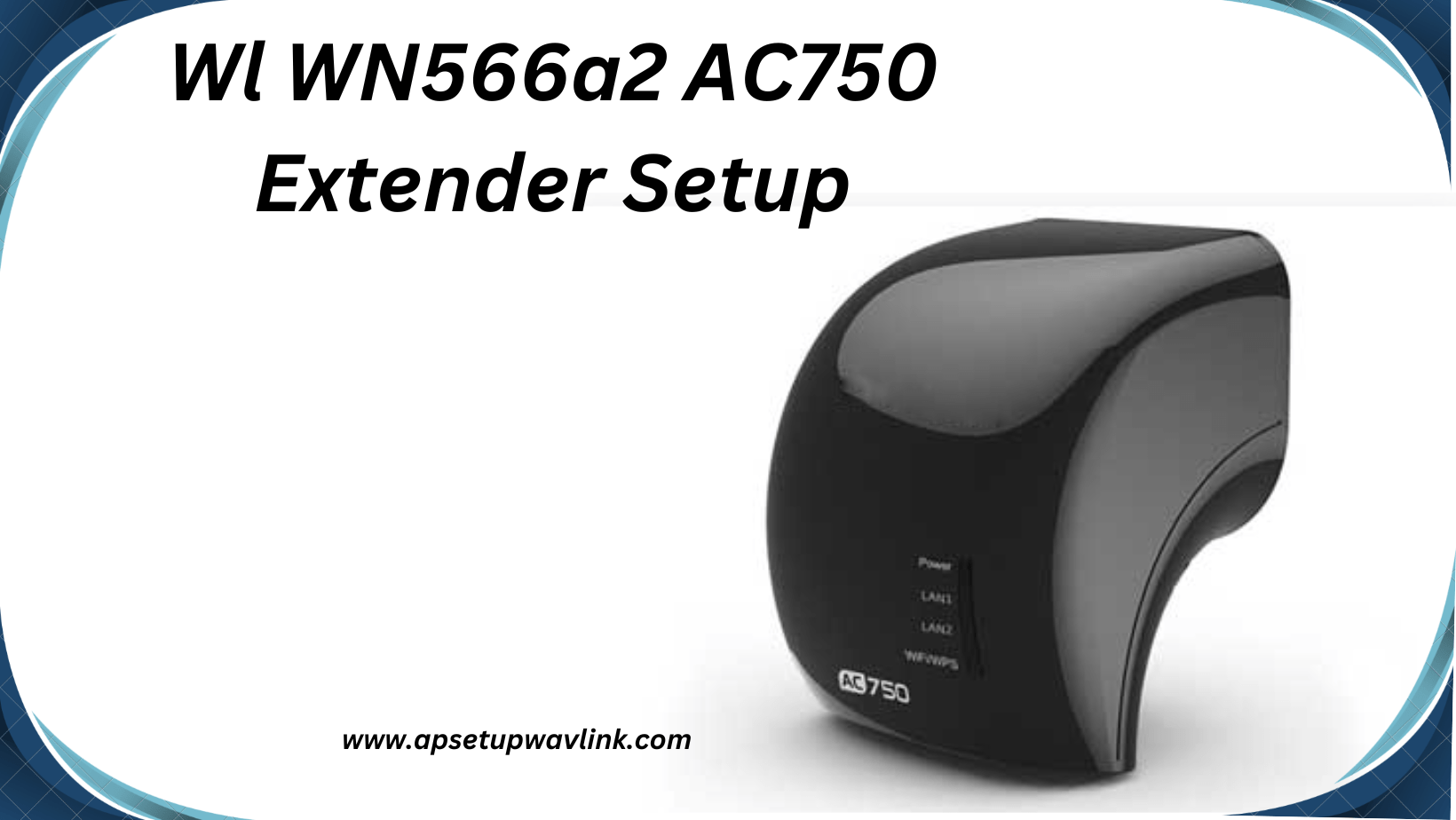

Wl WN566a2 AC750 Extender Setup is designed to deliver optimal internet speed across expansive areas like factories, streets, and office complexes. Operating on dual frequency bands, namely 2.4GHz and 5GHz, it effectively extends and repeats the Wi-Fi signal to cover greater distances, reaching areas that are beyond the direct range of the router.
Unboxing Of Wl WN566a2 AC750 Extender Setup
Please double-check everything before using this AC750 range extender; if something is missing, get in touch with your internet service provider.
There are three things you can see during the unboxing time.
- One AC750 wireless range extender device.
- Brief manual guide.
- A lengthy Ethernet cable.
- Setup guide for the WL WN566A2 AC750 Extender.
- Overview of the Wavlink AC750 Extender Gadget.
On the gadget, you can see many buttons:
- Power LED
- LAN LED
- LAN/WAN LED
- WPS/WiFi LED
- LAN port
- WAN port.
- WPS button
- Reset button
- Mode selector.
Indication Of Wavlink AC750 Extender LED
The LED indicator confirms proper activation when the device is powered on. Conversely, an inactive LED signals that your Wavlink AC750 extender gadget is not receiving electrical power.
LAN and WAN LED:
The LAN and WAN LEDs indicate a successful connection to the Ethernet port when illuminated. Conversely, when the LAN and WAN LEDs are off, it signifies that the Ethernet port connection is disconnected. A flashing LED indicates the transfer of data from the networking device.
WiFi Protected System LED:
A steady WPS LED indicates that your AC750 extender gadget is connected through the WiFi Protected Setup button.
Login Into Wavlink AC750 Range Extender
Before proceeding with the WL WN566A2 AC750 extender setup, you must first complete the extender login process. Follow the step-by-step instructions below to log in to the Wavlink AC750 extender.
- Begin by connecting your WL WN566A2 AC750 extender device to any Wi-Fi-enabled device.
- Next, link that Wi-Fi device to the Wavlink_EXT network.
- Open the web browser and enter the web address wifi.wavlink.com in the address bar.
- The login page of the Wavlink AC750 extender will then appear on your display.
- Enter the correct details as shown on the login page.
- Consequently, the login process for the WL WN566A2 AC750 extender extender is successfully completed.
WL WN566A2 AC750 Extender Setup
There are two methods to easily pair your extender with the router.
Using the WPS Buttons on Both Devices:
Note: Prior to using this method, ensure that your existing router supports the WPS button. If your router does not have a WPS button, it is recommended to choose an alternative method to avoid wasting time.
WL WN566A2 AC750 Extender Setup
- Begin by plugging your Wavlink AC750 extender into an electrical socket.
- Ensure that both your extender and router are placed in the same room, not in separate rooms.
- Press the WPS button on both the extender and router devices for a short duration.
- After completing these steps, a solid blue LED will start flashing, indicating successful pairing between the extender and router.
- Consequently, by following the above steps, you will complete the WL WN566A2 AC750 extender setup process.
Connect Via An Ethernet Cable:
- Begin by obtaining a long Ethernet cable.
- Connect one end of the cable to the extender’s Ethernet port and the other end to the LAN port on the router.
- During this process, link your extender to the computer.
- Enter the IP address 192.168.10.1.
- On the extender configuration page, input all the necessary information and create a login password for WiFi protection.
- Select the setup wizard, then choose the SSID of the host router and enter the WiFi security password.
- After completing the above steps, wait for a while to observe a solid blue LED on both the extender and router devices.
- Finally, disconnect the plug of the Wavlink AC750 extender from the electrical socket and position the extender where you experience slow internet speed.
Benefits Of WL WN566A2 AC750 Extender Setup
This AC750 Wavlink WiFi extender gadget removes all the dead spot areas of the house and office.
- Dual Frequency Bands: The AC750 extender supports both the 2.4GHz and 5GHz frequency bands.
- Ease of Login and Configuration: The login and configuration process for the AC750 extender is remarkably easy and simple.
- Quick Range Extension: In just a short period, you can effortlessly extend the range of your router’s WiFi signal.
Troubleshoot Wl WN566a2 AC750 Extender Setup In One Method
Improve Wavlink Extender Firmware:
- Ethernet Connection: Begin by connecting the extender and the computer using an Ethernet cable.
- Accessing the Web Address: Open a web browser and enter the Wavlink extender’s web address.
- Login Procedure: Log in to the Wavlink extender to access the firmware portal.
- Firmware Upgrade: Select the “Administration” option, and then choose the “Firmware Upgrade” option for the extender.
- Downloading Upgrade Firmware: Wait briefly as the upgrade firmware file is downloaded to your laptop or computer
After completing the Wl WN566a2 AC750 Extender Setup process, if you encounter any issues, feel free to reach out to us for assistance. We are here to help you resolve any extender-related problems quickly. You can contact us by calling our phone number at +1-323-471-3045.
Common Wavlink Extender Setups
- Wavlink WiFi 6 Router Setup
- Wavlink WiFi5 extender Setup
- wavlink n300 setup
- Wavlink wifi4 extender setup
- WL WN583A6 AC2100 Extender Setup
Some Issues You Might Face while Wl WN566a2 AC750 Extender Setup
Here are the Wl WN566a2 AC750 Extender Setup issues that you might face:
- Login issues with Wavlink
- Wavlink.com’s WiFi is down.
- Why won’t my wifi extender work? Why won’t my wifi repeater work?
- WiFi extender password not working Ethernet extender not working
- Not functioning Wavlink router
- Unable To Establish An IP Fix Fix the Wavlink Red Light Issue and Wavlink Yellow Light Issue.
How do I initiate the setup process for the Wl WN566A2 AC750 Extender?
Follow the detailed instructions provided in the user manual or on our official website to set up the extender seamlessly.
What frequency bands does the Wl WN566a2 AC750 Extender Setup support?
Wl WN566a2 AC750 Extender Setup supports both the 2.4GHz and 5GHz frequency bands for versatile connectivity options.
Is the login and configuration process complicated?
No, the login and configuration process for the AC750 Extender is designed to be easy and straightforward.
